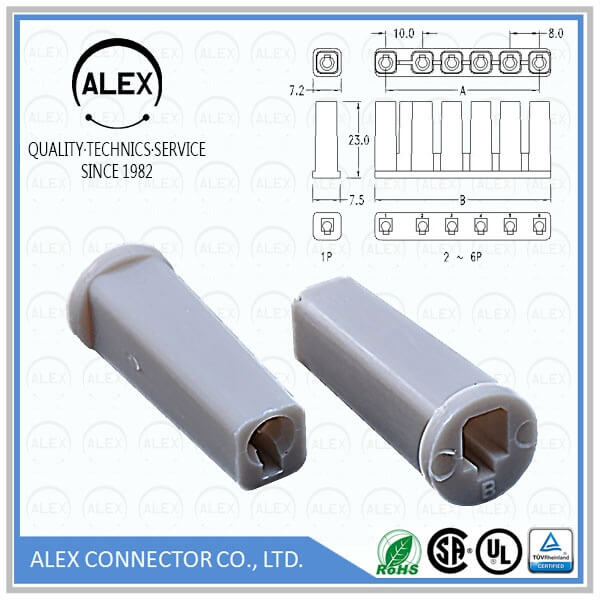

Product Name : Crimp Terminal Housing / .315"(8.0mm)/.394"(10.0mm) Connector and Header

Part Number: 8836-xx

Category : Wire to Board

Pitch : .315＂(8.00mm) /　　 .394＂(10.00mm)

Series : WTB8100

File : Download

Product Features

◆ 1 ~ 6 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 8835T Terminal
◆ Mates with ALEX 8837-N Header
◆ Polarization through varied center spacing
　between 1 & 2
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -25℃ ~ 85℃
　(Including temperature rise)
