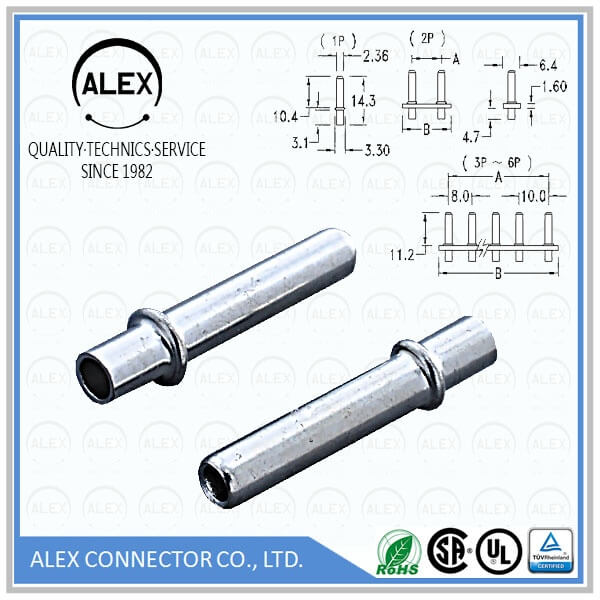

Product Name : Vertical Header / .315"(8.0mm)/.394"(10.0mm) Connector and Header

Part Number: 8837-xx

Category : Wire to Board

Pitch : .315＂(8.00mm) /　　 .394＂(10.00mm)

Series : WTB8100

File : Download

Product Features

◆ 1 ~ 6 circuits available
◆ Material: Bakelite, UL 94V-0, Black color
◆ Tin plated brass pins, plating options available.
◆ .093"(2.36mm) straight round pin
◆ Mates with ALEX 8836-N housing
◆ Polarization through varied center spacing between 1 & 2
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -25℃ ~ 85℃
　(Including temperature rise)
