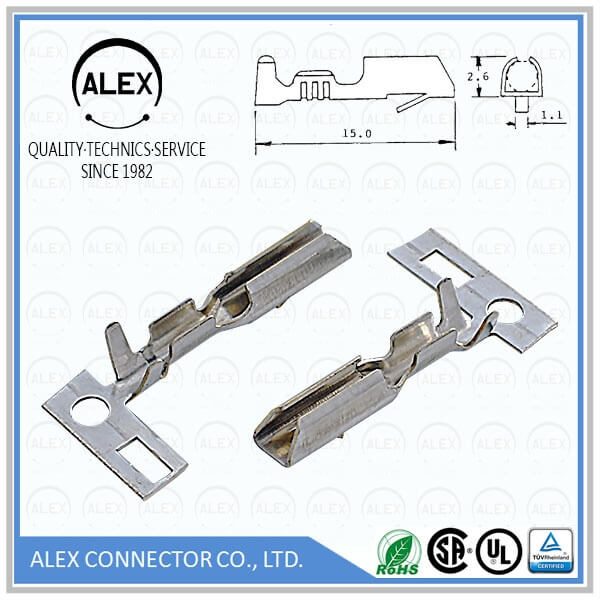

Product Name : Crimp Terminal / .315"(8.0mm)/.394"(10.0mm) Connector and Header

Part Number: 8835T

Category : Wire to Board

Pitch : .315＂(8.00mm) /　　 .394＂(10.00mm)

Series : WTB8100

File : Download

Product Features

◆ Material: Brass
◆ Finished: Tin-plated
◆ Used in ALEX 8836-N Housing
◆ Wire range: AWG #20 ~ #24
◆ Insulation O.D.: 0.63"(1.60mm) ~
　1.06"(2.70mm)

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -25℃ ~ 85℃
　(Including temperature rise)
