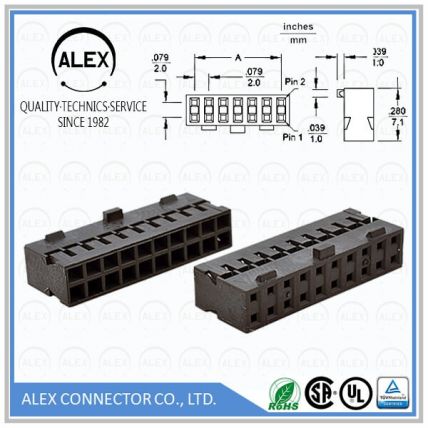

Product Name : Dual Row Housing / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2041-xx

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2008

File : Download

Product Features

◆ 4 ~ 30 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 2040T Terminal
◆ Mates with ALEX 2042, 2043, 2044 Header

Series Specifications

◆ Current rating: 2A AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
　(including temperature rise)
