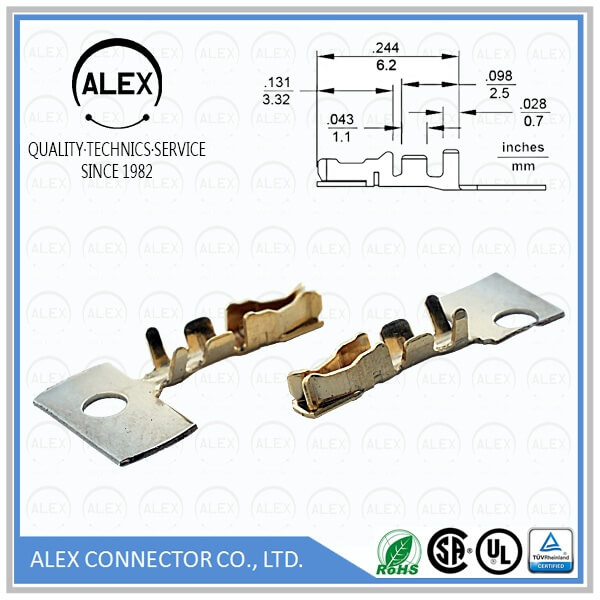

Product Name : Crimp Terminal / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2040T

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2008

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated over nickel
◆ Thickness: 0.20mm
◆ Used in ALEX 2041 Housing
◆ Q'ty: 10Kpcs / Reel

Series Specifications

◆ Current rating: 2A AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
　(including temperature rise)
