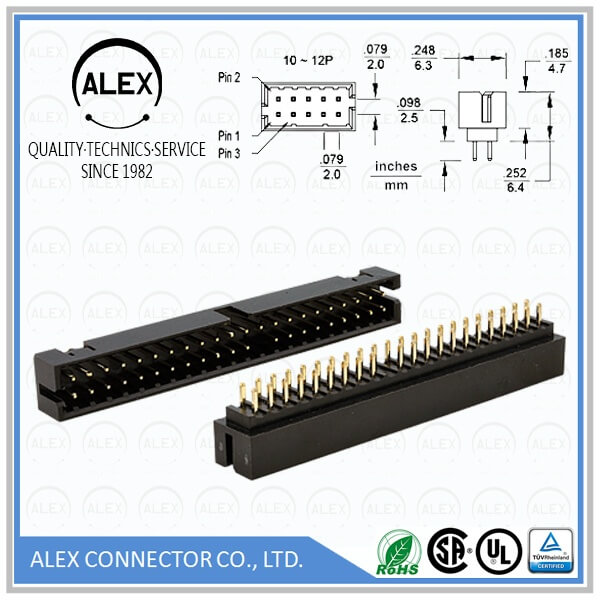

Product Name : Vertical Box Header / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2042-xx-2

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2008

File : Download

Product Features

◆ 10~36,40,44,50,60,64 circuits available
◆ Plastic Material: Nylon 6T
◆ Contact material: Brass
◆ Finished: Gold over nickel
◆ .020"(0.50mm) square pin
◆ Mates with ALEX 2041 Housing
◆ Without disposable cap
◆ Packing: Tray

Series Specifications

◆ Current rating: 2A AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
　(including temperature rise)
