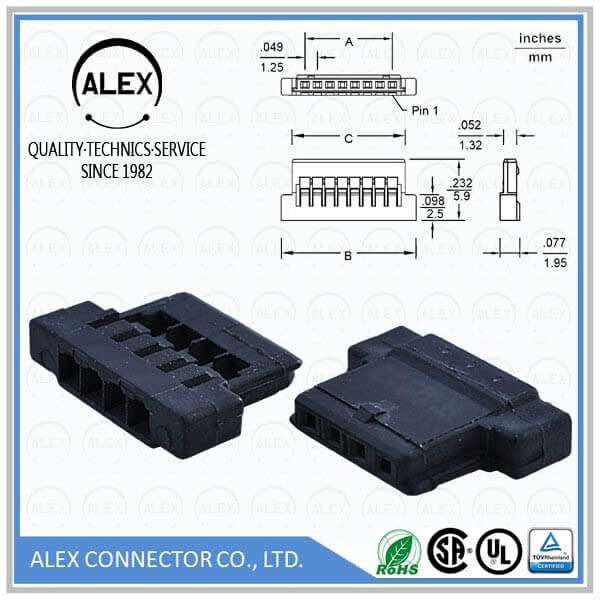

Product Name : Crimp Terminal Housing / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9831-xx

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1255

File : Download

Product Features

◆ 2 ~ 10, 14, 15, 20, 25, 30
　circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 9830T Termianl
◆ Mates with ALEX 9832-N Header

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: 50mΩ max.
◆ Insulation resistance: 500MΩ min.
◆ Dielectric withstanding voltage:
　150V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
