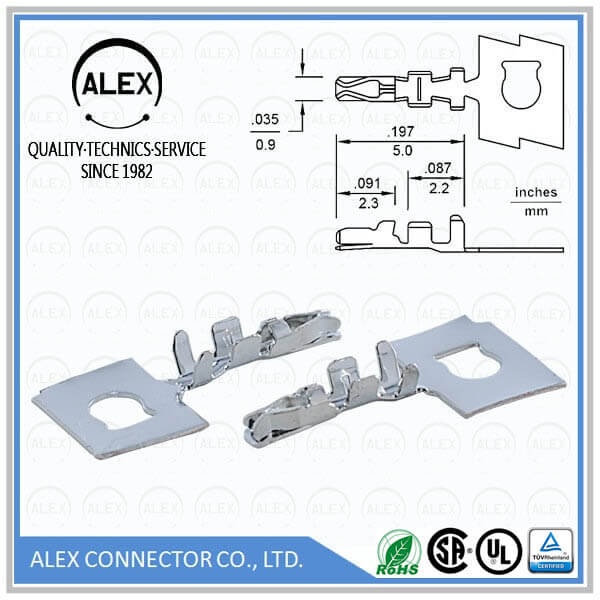

Product Name : Crimp Terminal / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9830T

Category : Wire to Board

Pitch : .049"(1.25mm)

Series : WTB1255

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 9831-N housing
◆ Wire range: #28 ~ #34 AWG
◆ Thickness: 0.15mm

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: 50mΩ max.
◆ Insulation resistance: 500MΩ min.
◆ Dielectric withstanding voltage:
 150V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
 (Including temperature rise)
