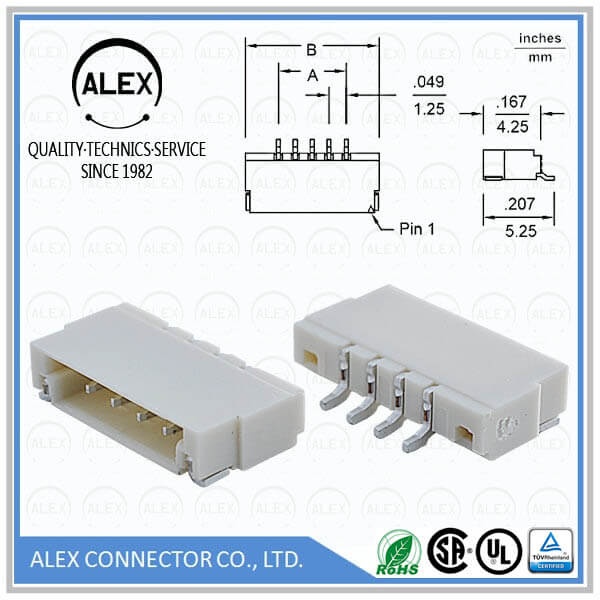

Product Name : Right Angle Header, SMT / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9832-xx

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1255

File : Download

Product Features

◆ 2 ~ 10, 14, 15, 20, 25, 30
　circuits available
◆ Material: UL 94V-0 nylon 9T
◆ Contact: Copper alloy
◆ Finished: Tin-plated
◆ Mates with ALEX 9831-N Housing

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: 50mΩ max.
◆ Insulation resistance: 500MΩ min.
◆ Dielectric withstanding voltage:
　150V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
