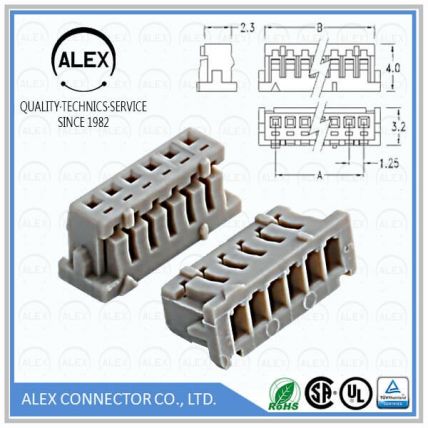

Product Name : Single Row Housing / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9812-xx

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1251

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 9811T Terminal
◆ Mates with ALEX 9813, 9814 Headers
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: 20mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Insulation resistance: 500MΩ min.
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
