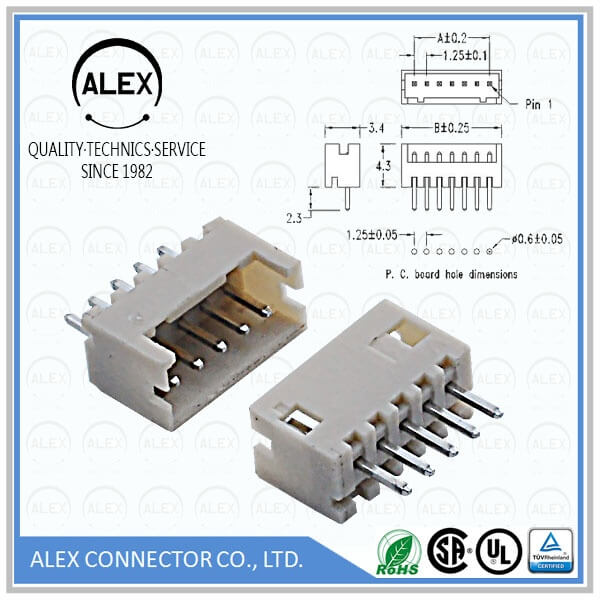

Product Name : Single Row Vertical Header / .049"(1.25mm) Wire-to-Board Connector
Part Number: 9813-xx
Category : Wire to Board
Pitch : .049"(1.25mm)
Series : WTB1251
File : Download
Product Features
◆ 2 ~ 15 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Finished: Tin-plated brass pin
◆ .014"(0.35mm) square pin
◆ Mates with ALEX 9812 Housing
◆ UL file No.: E114003
Series Specifications
◆ Current rating: 1A
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: 20mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Insulation resistance: 500MΩ min.
◆ Ambient temperature range: -25℃ ~ +85℃
(Including temperature rise)
