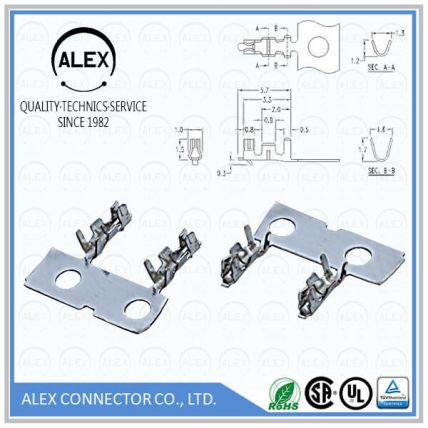

Product Name : Crimp Terminal / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9811T

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1251

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 9812, 9815 Housings
◆ Wire range: AWG #28 ~ #32
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: 20mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Insulation resistance: 500MΩ min.
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
