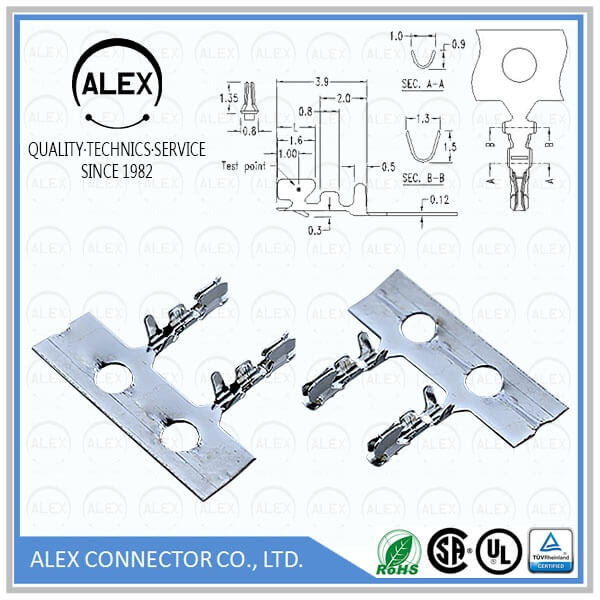

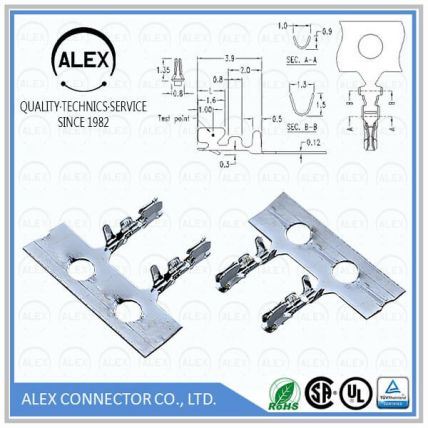

Product Name : Crimp Terminal / .039"(1.00mm) Wire-to-Board Connector

Part Number: 1001T

Category : Wire to Board

Pitch : .039＂(1.00mm)

Series : WTB1001

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated or Gold-flash
◆ Used in ALEX 1002, 1005 Housing
◆ Wire range: AWG #28 ~ #32
◆ Insulation O.D.: .016" ~ .031"
　(0.40mm ~ 0.80mm)
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A AC, DC (AWG #28)
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Insulation resistance: 100MΩ min.
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
