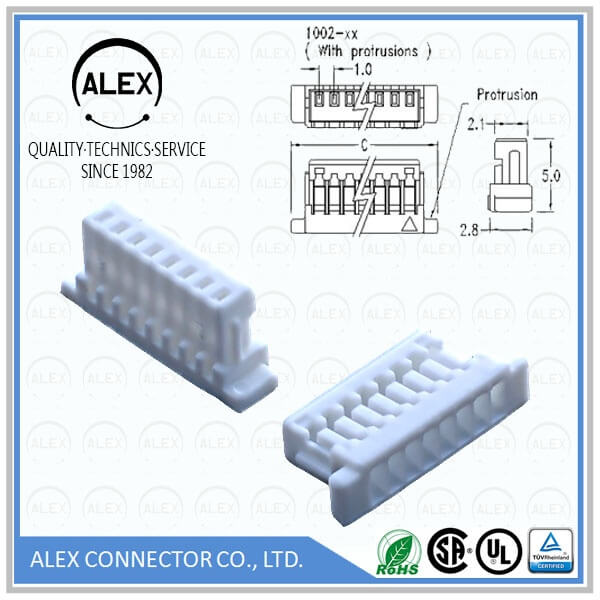

Product Name : Crimp Terminal Housing / .039"(1.00mm) Wire-to-Board Connector

Part Number: 1002-xx

Category : Wire to Board

Pitch : .039＂(1.00mm)

Series : WTB1001

File : Download

Product Features

◆ 2 ~ 16, 20 circuits available
◆ Material: PBT UL 94V-0
◆ Color: White
◆ With protrusions
◆ Accepts ALEX 1001T Terminal
◆ Mate with ALEX 1003, 1004 Housing
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A AC, DC (AWG #28)
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Insulation resistance: 100MΩ min.
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
