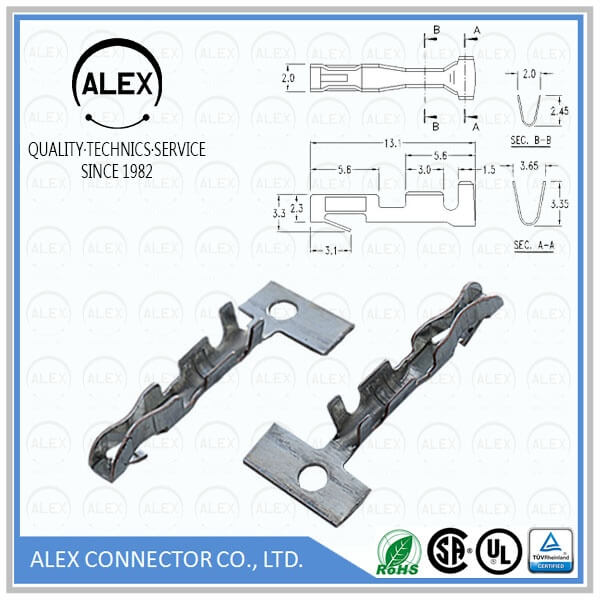

Product Name : Crimp Terminal / .295"(7.5mm)/.197"(5.0mm) WTB Connector

Part Number: 8830T

Category : Wire to Board

Pitch : .295＂(7.50mm) /　　 .197＂(5.00mm)

Series : WTB7551

File : Download

Product Features

◆ Material: Brass
◆ Finished: Tin-plated
◆ Used in ALEX 8831 Housing
◆ Wire range: AWG #20 ~ #26
◆ Insulation O.D.: .051"(1.3mm) ~ 1.06"(2.7mm)

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
