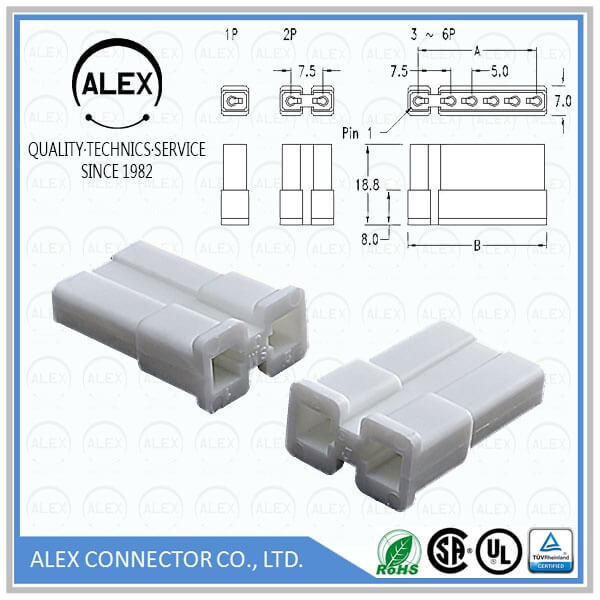

Product Name : Crimp Terminal Housing/ .295"(7.5mm)/.197"(5.0mm) WTB Connector

Part Number: 8831-xx

Category : Wire to Board

Pitch : .295＂(7.50mm) /　　 .197＂(5.00mm)

Series : WTB7551

File : Download

Product Features

◆ 1 ~ 6 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Polarization through varied center spacing
　between circuits 1 & 2
◆ Mates with .061"(1.55mm) round pins
◆ Accepts ALEX 8830T Terminal
◆ Mates with ALEX 8832-xx Header
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
