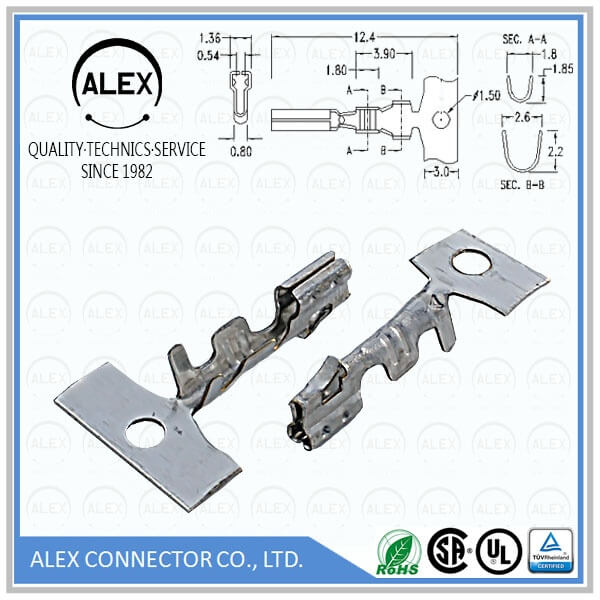

Product Name : Mini Spring-Box Crimp Terminal / .098"(2.50mm) Wire-to-Board Connectors

Part Number: 54T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB250B

File : Download

Product Features

◆ Low profile
◆ 4 point contact
◆ Material: Brass or phosphor bronze
◆ Finished: Tin-plated
◆ Anti-fishhooking contact design
◆ Used in ALEX 2502 Housing
◆ Wire range: AWG #22 ~ #28
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/20mΩ Max.
　After environmental testing/40mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
