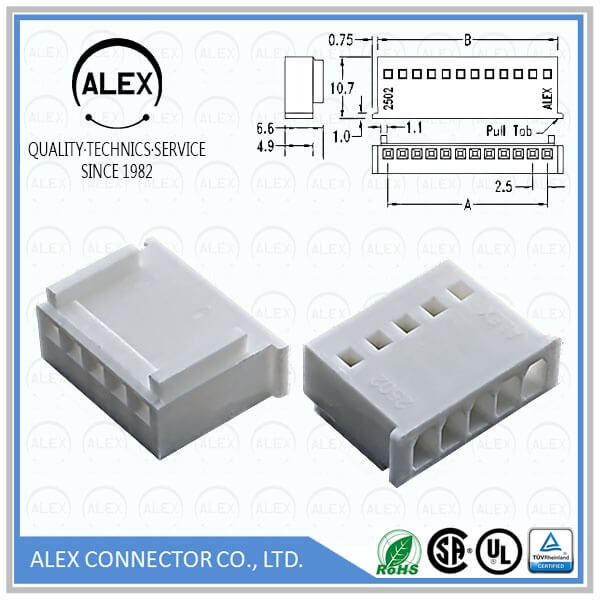

Product Name : Mini Spring-Box Crimp Terminal Housing / .098"(2.50mm) Wire-to-Board Connectors

Part Number: 2502-xx

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB250B

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Low profile
◆ Molded pull tab
◆ Friction lock
◆ Accepts ALEX 54T Terminal
◆ Mates with ALEX 2540 Housing
◆ Mates with ALEX 8812, 8813 Headers
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/20mΩ Max.
　After environmental testing/40mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
