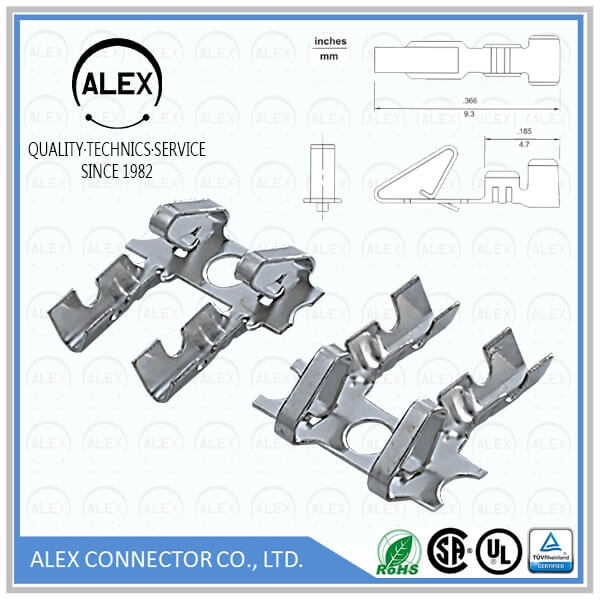

Product Name : Crimp teriminal / .098"(2.50mm) KK Type Wire-to-Board

Part Number: 51T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2505

File : Download

Product Features

◆ Material: Brass or phosphor bronze
◆ Finished: Tin-platedTin-plated
◆ Thickness: 0.20mm
◆ Wire range:AWG #22 ~ #26
◆ Used in ALEX 2510, 8811 Housings
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A
◆ Voltege rating: 250V AC, DC Max.
◆ Engagement force: 500g Max. with
　tin-plated .025"(0.64mm) square pin
◆ Disengagement Force: 87g Min. for first cycle
◆ Ambient temperature range: -40°C ~ +105°C
