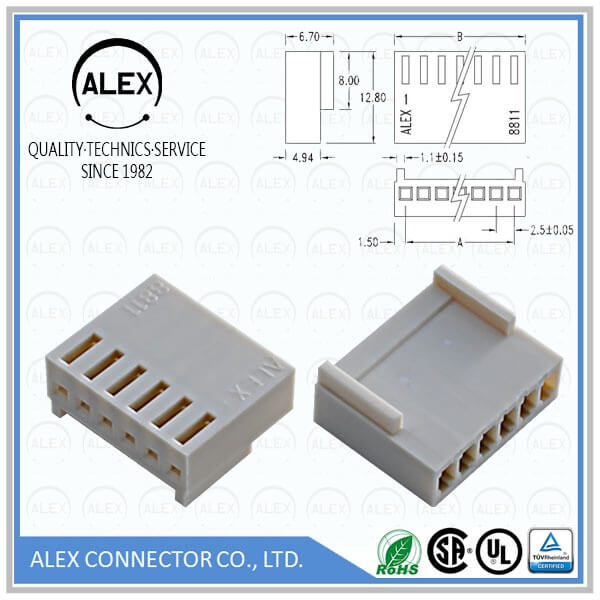

Product Name : Polarizing Housing / .098"(2.50mm) KK Type Wire-to-Board

Part Number: 8811-xx

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2505

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ Material: UL 94V-0 nylon
◆ Molded friction lock
◆ Accepts ALEX 51T Terminal
◆ Mates with ALEX 8812, 8813 Headers
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A
◆ Voltege rating: 250V AC, DC Max.
◆ Engagement force: 500g Max. with
　tin-plated .025"(0.64mm) square pin
◆ Disengagement Force: 87g Min. for first cycle
◆ Ambient temperature range: -40°C ~ +105°C
