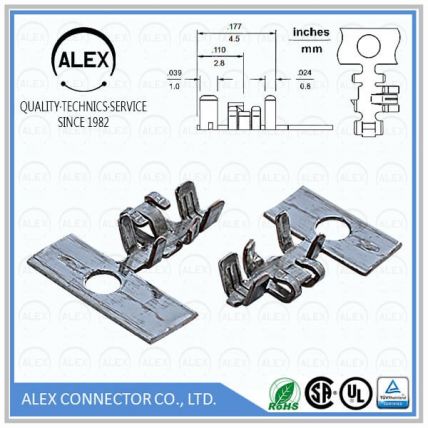

Product Name : Crimp Terminal / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2031T

Category : Wire to Board

Pitch : .079"(2.00mm)

Series : WTB2004

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 2032 Housing
◆ Wire range: AWG #24 ~ #28
◆ Thickness: 0.25mm

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
 After environmental testing/40mΩ max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 800V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
 (Including temperature rise)
