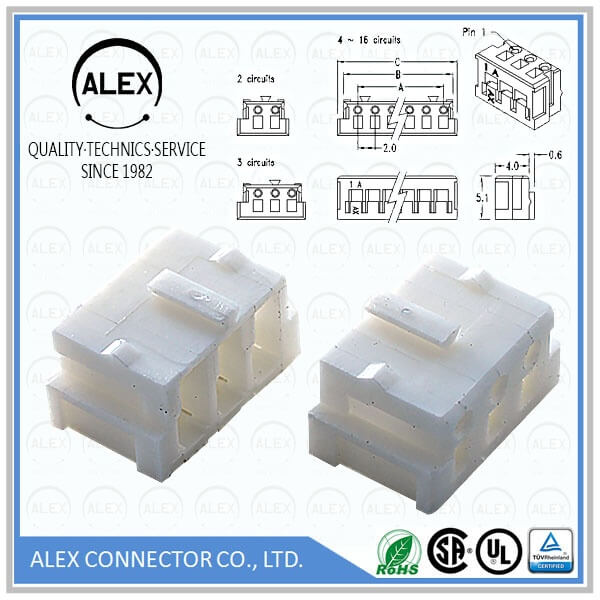

Product Name : Crimp Terminal Housing / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2032-xx

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2004

File : Download

Product Features

◆ 2 ~ 16 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Standard color: White
◆ Accepts ALEX 2031T Terminal
◆ Mates with ALEX 2033, 2034 Headers

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 800V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
