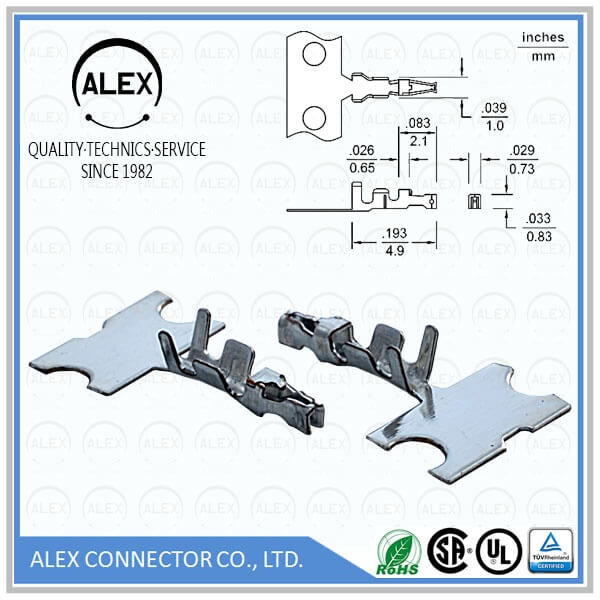

Product Name : Crimp Terminal / .049"(1.25mm) Wire-to-Board Connectors

Part Number: 9851T

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1254

File : Download

Product Features

◆ Material: Phosphor Bronze
◆ Finished: Tin-plated
◆ Thickness: 0.15mm
◆ Wire range: AWG #28 ~ #32
◆ Used in ALEX 9852 housing

Series Specifications

◆ Current rating: 1A AC
◆ Voltage rating: 250V AC
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -40℃ ~ +85℃
　(Including temperature rise)
