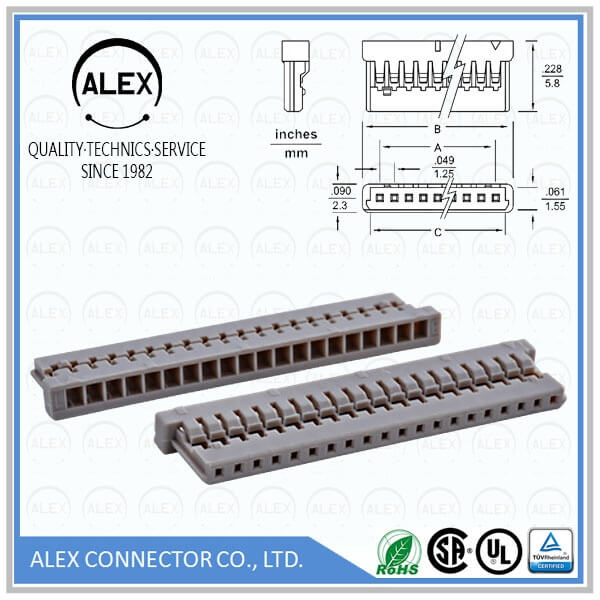

Product Name : Crimp Terminal Housing / .049"(1.25mm) Wire-to-Board Connectors

Part Number: 9852-xx

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1254

File : Download

Product Features

◆ 20, 25,30 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Tin-plated brass
◆ Accepts ALEX 9851T
◆ Mates with ALEX 9853 Header

Series Specifications

◆ Current rating: 1A AC
◆ Voltage rating: 250V AC
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -40℃ ~ +85℃
　(Including temperature rise)
