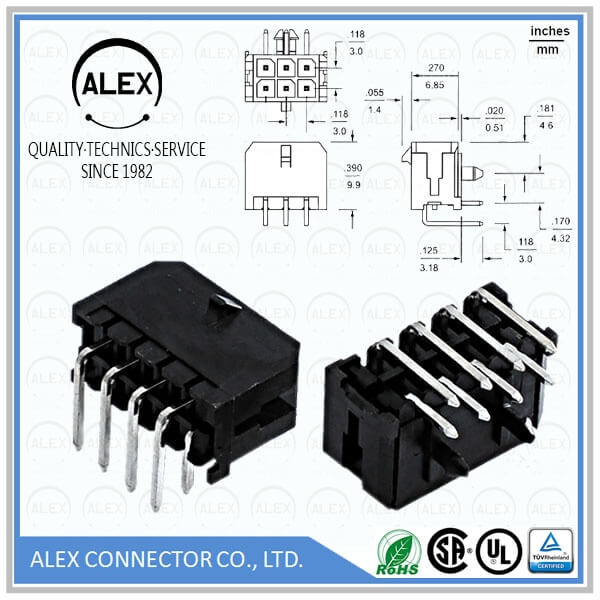

Product Name : Right Angle Header / .118"(3.00mm) Dual Row Wire-to-Board Connectos

Part Number: 3046-xx

Category : Wire to Board

Pitch : .118＂(3.00mm)

Series : WTB300D

File : Download

Product Features

◆ Available in 2 thru 24 circuits
◆ Plastic material: Nylon 6T
◆ Tin-plated Brass pin
◆ .0246"(0.625mm) square pin
◆ Mates with ALEX 3025-N Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 5A Max. AC/DC
◆ Voltage rating: 250V AC(RMS) or DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: 30°C Max.
　(carry rated current load)
