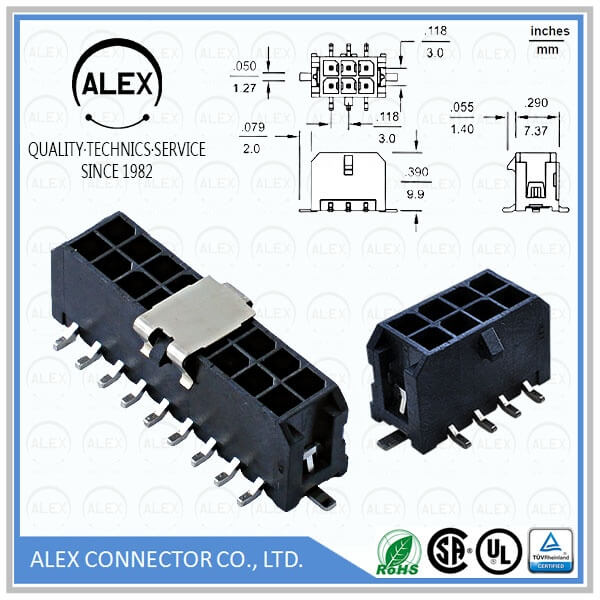

Product Name : Vertical Header, SMT / .118"(3.00mm) Dual Row Wire-to-Board Connectos

Part Number: 3047-xxFN

Category : Wire to Board

Pitch : .118＂(3.00mm)

Series : WTB300D

File : Download

Product Features

◆ Available in 2 thru 24 circuits
◆ Plastic material: LCP
◆ Contact: Tin-plated Brass pin
◆ With solderable fitting nail
◆ Recommended PCB Thickness: .062"(1.57mm)
◆ Mates with ALEX 3025-N Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 5A Max. AC/DC
◆ Voltage rating: 250V AC(RMS) or DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: 30°C Max.
　(carry rated current load)
