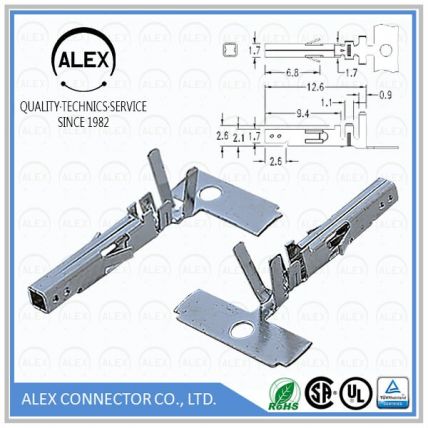

Product Name : Female Crimp Terminal / .165"(4.20mm) Power Connector

Part Number: 4256TP2-A

Category : Wire to Board

Pitch : .165＂(4.20mm)

Series : WTB420G

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Wire range: #20 ~ #24 AWG
◆ Used in ALEX 9357-06-B, 9357-06-BR，
　9357-08-B, 9357-08-BR　Housings
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
