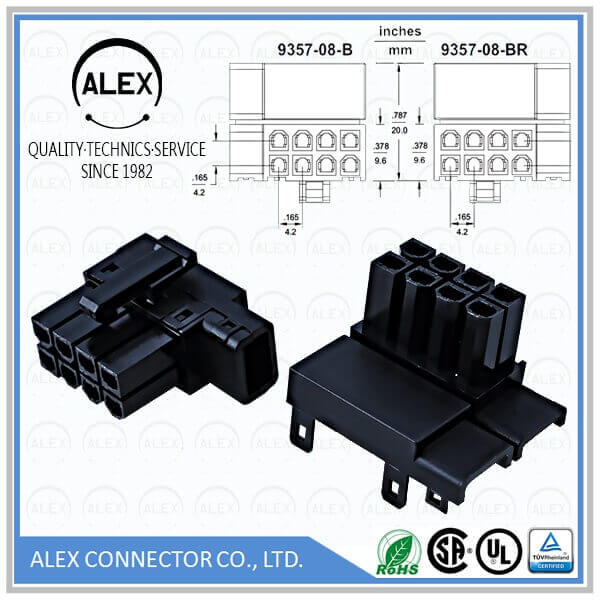

Product Name : Receptacle Housing / .165"(4.20mm) Power Connector

Part Number: 9357-08-B 9357-08-BR

Category : Wire to Board

Pitch : .165＂(4.20mm)

Series : WTB420G

File : Download

Product Features

◆ 8 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Positive housing locks & Fully isolated terminals
◆ Low engagement force terminals
◆ Accepts ALEX 4256TP2-A Terminal
◆ Current rating up to 6A (with #20 AWG)
◆ Mates with ALEX 9358-08, 9362-08 Housings
◆ Mates with ALEX 9359-08, 9360-08, 9363-08,
　9364-08 headers
◆ Standard color: Black

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
