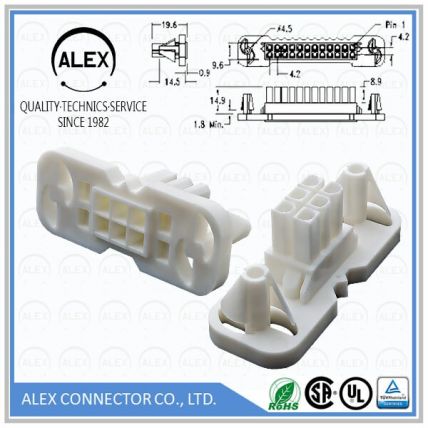

Product Name : Crimp Terminal Housing / .165"(4.20mm) Power Connector

Part Number: 9361-xx

Category : Wire to Wire

Pitch : .165"(4.20mm)

Series : WTW420G

File : Download

Product Features

◆ 2 ~ 24 circuits available
◆ Material: UL 94V-0 or UL 94V-2
◆ Recommended Panel Cut-out for 1.27mm
 +-0.30mm thickness panel
◆ Accepts ALEX 4256T Terminal
◆ Mates with ALEX 9358-xx, 9362-xx Housings
◆ Mates with ALEX 9363-xx, 9364-xx Headers
◆ UL file No.: E114003

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
 After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
 (Including temperature rise)
