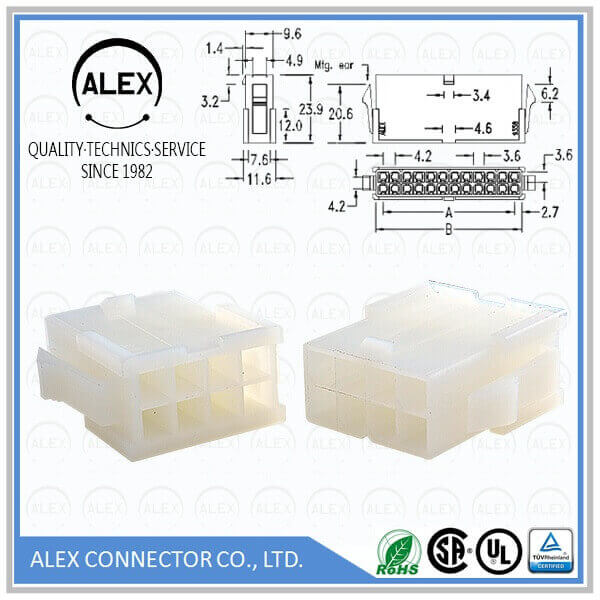

Product Name : Plug Housing / .165"(4.20mm) Power Connector

Part Number: 9358-xxE

Category : Wire to Wire

Pitch : .165＂(4.20mm)

Series : WTW420G

File : Download

Product Features

◆ 2 ~ 24 circuits available
◆ Material: UL 94V-2 nylon66
◆ Positive housing locks
◆ With Mtg. Ears
◆ Accepts ALEX 4257T Terminal
◆ Mates with ALEX 9357-xx, 9361-xx Housings
◆ Max. panel thickness: 2.54mm
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
