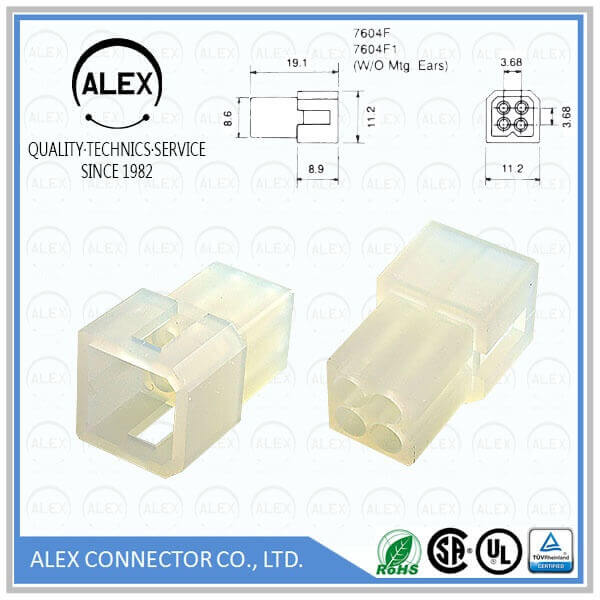

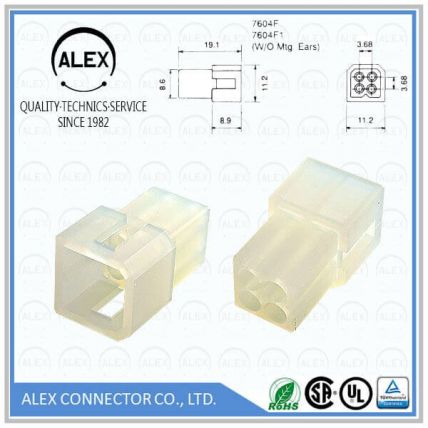

Product Name : Plug Housing / .062"(1.58mm) WTW Connectors

Part Number: 7604F1

Category : Wire to Wire

Pitch : .145＂(3.68mm)

Series : WTW3681

File : Download

Product Features

◆ 4 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Accepts ALEX 55T, 56T terminals
◆ Friction lock
◆ Wthout Mtg. ears
◆ Color: Nature
◆ 0.145"(3.68mm) grid spacing
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40°C ~ +125°C
