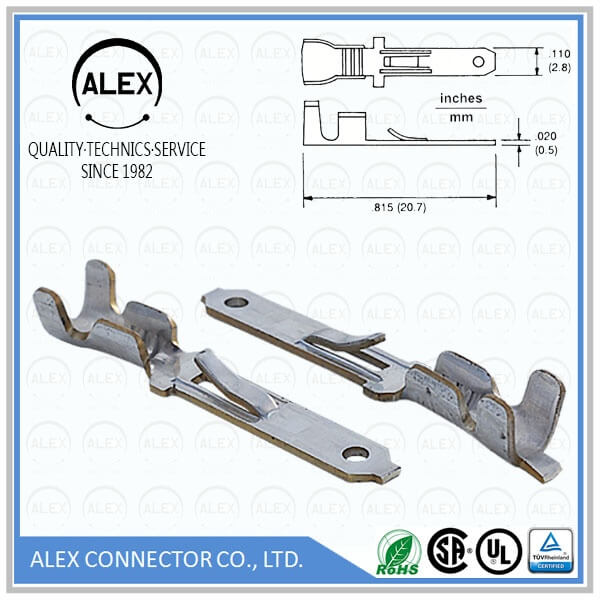

Product Name : Crimp Terminal / .110"(2.79mm) Wire to Wire Terminal Housing

Part Number: 1200T

Category : Wire to Wire

Pitch : .110＂(2.79mm)

Series : WTW2791

File : Download

Product Features

◆ Material: Brass
◆ Finished: None
◆ Applicable wires: AWG #16 ~ #24
◆ Thickness: 0.50mm
◆ Insulation O.D.: 1.80mm ~ 3.10mm max.
◆ Used in ALEX 7120 Housings

Series Specifications

◆ Housing Material: ABS or PA66
◆ Terminal Material: Brass
◆ Applicable wires: AWG #16 ~ #24
◆ Insulation O.D.: 1.80mm ~ 3.10mm max.
