7120-xxL
7120-xxL

详细介绍

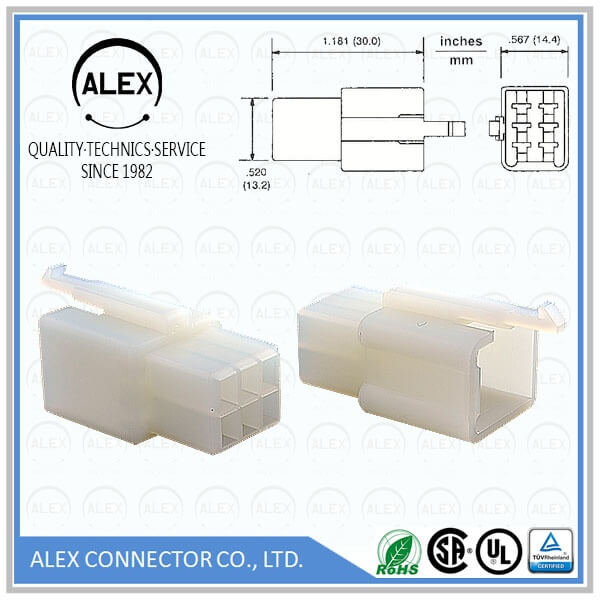

Product Name : Plug Housing / .110"(2.79mm) Wire to Wire Terminal Housing

Part Number: 7120-xxL

Category : Wire to Wire

Pitch : .110"(2.79mm)

Series : WTW2791

File : Download

Product Features

◆ 2, 3, 4, 6, 9 circuits available
◆ Material: ABS(7120-xx) or PA66(7120-xxL)
◆ Standard color: Natural
◆ With lock(7120-xxL) or Without lock(7120-xx)
◆ Accepts ALEX 1200T Terminal
◆ Mates with ALEX 7110 Housing

Series Specifications

◆ Housing Material: ABS or PA66
◆ Terminal Material: Brass
◆ Applicable wires: AWG #16 ~ #24
◆ Insulation O.D.: 1.80mm ~ 3.10mm max.
