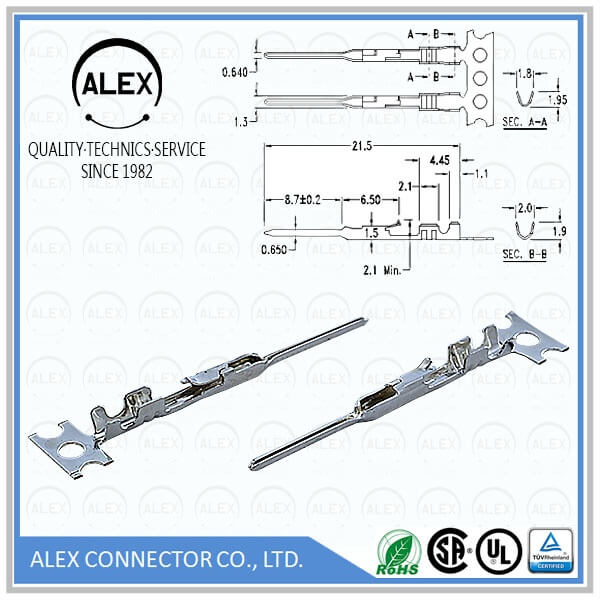

Product Name : Male Crimp Terminal / .100"(2.54mm) Single Row Crimp Connector

Part Number: 9559T

Category : Wire to Wire

Pitch : .100＂(2.54mm)

Series : WTW254C

File : Download

Product Features

◆ Material: Brass or phosphor bronze
◆ Finished: Tin-plated or Gold-flash
◆ Used in ALEX 9567-xx Housing
◆ Wire range: #22 ~ #33 AWG
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation Resistance: 10000MΩ min.
◆ Contact resistance: Initial value/15mΩ max.
　After environmental testing/30mΩ Max.
◆ Dielectric Withstanding Voltage:
　600V (R.M.S.) AC/minute
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
