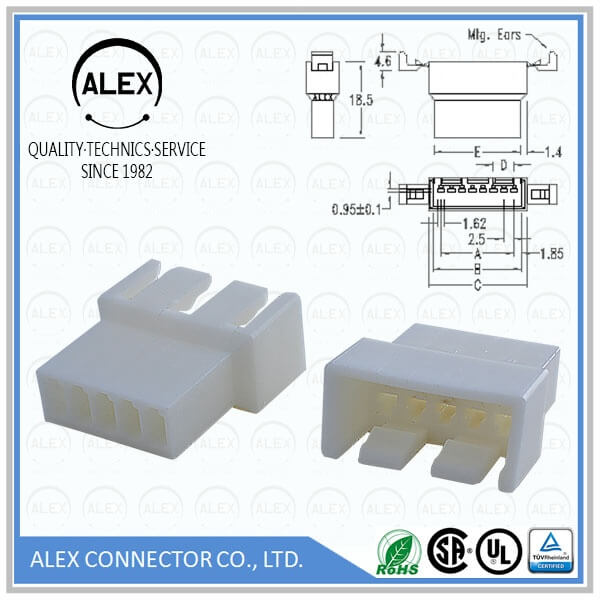

Product Name : Plug Housing / .098"(2.50mm) Mini Spring-Box Connectors

Part Number: 2540-N1

Category : Wire to Wire

Pitch : .098＂(2.50mm)

Series : WTW250B

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Without Mounting ears
◆ Friction lock
◆ Accepts ALEX 41T Terminal
◆ Mates with ALEX 2502 Housing
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
