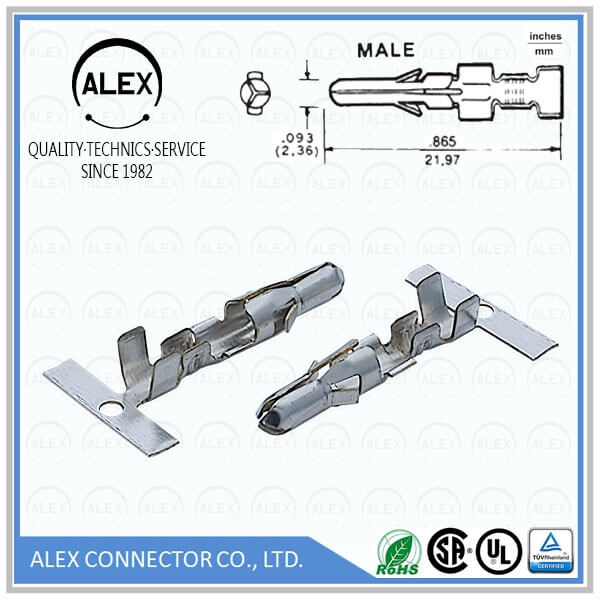

Product Name : Male Diameter Terminal / .093"(2.36mm) Wire to Wire Power Connectors

Part Number: 80T

Category : Wire to Wire

Pitch : .093＂(2.36mm)

Series : WTW2361

File : Download

Product Features

◆ Material: Tin-Plated Brass
◆ RMS for 60 seconds min. applied between
　adjacent terminals. c
◆ Temperature Rise: 30°C max. for all connectors.
◆ Current Rating: Amperage rating up to
　12 amps on some sizes.
◆ Storage temperature range: -40°C ~ +125°C
◆ Terminal Crimp Strength-Minimum pull-out
　force in pounds (kilograms) for AWG sizes:
　14-35 (15.90)　　20-16 ( 6.80)　　26-05 ( 2.27)
　16-30 (13.60)　　22-10 ( 4.54)　　28-03 ( 1.36)
　18-20 ( 9.07)　　24-08 ( 3.63)　　30-02 ( 0.91)

Series Specifications

◆ Current rating: 12A (1P,2P,3P),
　9A (4P,5P,6P,9P), 7.5A (12P,15P)
◆ Voltage rating: 250V
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Ambient temperature range: -40°C ~ +105°C
