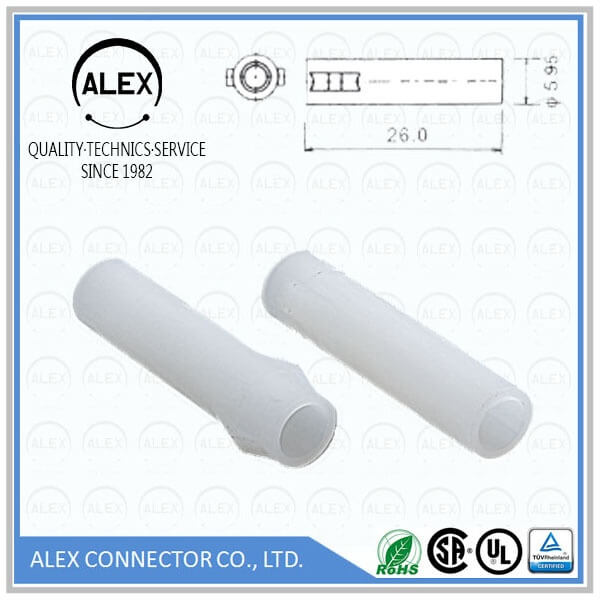

Product Name : Receptacle Housing / .093"(2.36mm) Wire to Wire Power Connectors

Part Number: 7619M

Category : Wire to Wire

Pitch : .093＂(2.36mm)

Series : WTW2361

File : Download

Product Features

◆ 1 circuit
◆ Material: UL 94V-2 nylon 66
◆ Accepts ALEX 80T, 81T terminals
◆ Integrally molded polarization
◆ Integrally molded mounting ears available
◆ Standard detent locking
◆ Standard color: Nature
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 12A (1P,2P,3P),
　9A (4P,5P,6P,9P), 7.5A (12P,15P)
◆ Voltage rating: 250V
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Ambient temperature range: -40°C ~ +105°C
