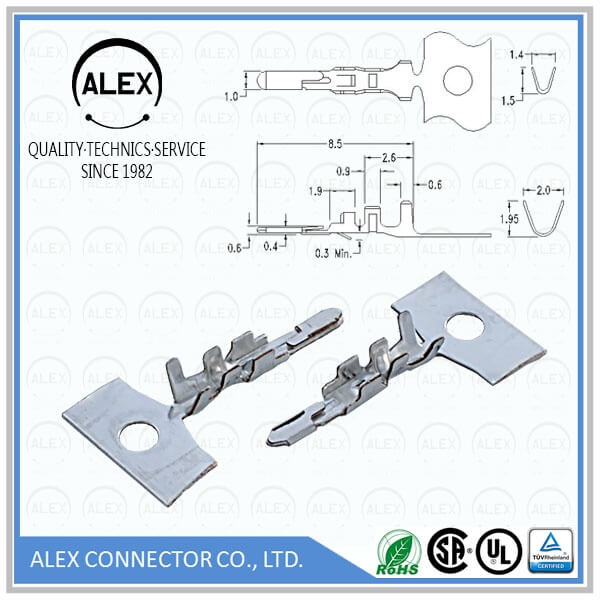

Product Name : Male Crimp Terminal / .079"(2.00mm) Center WTW System

Part Number: 9512T

Category : Wire to Wire

Pitch : .079＂(2.00mm)

Series : WTW2001

File : Download

Product Features

◆ Low profile
◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 9516 housing
◆ Wire range: AWG #24 ~ #28
◆ Insulation diameter: φ1.15mm Max.
◆ Strip length: 1.7 ~ 2.3mm
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 125V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
