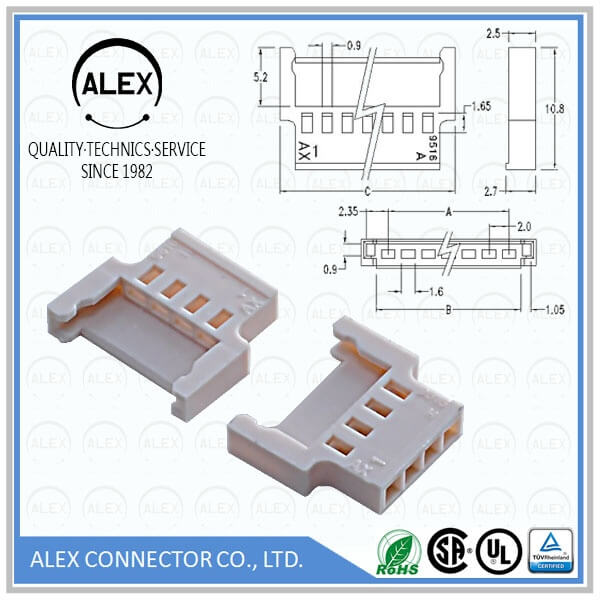

Product Name : Plug Housing / .079"(2.00mm) Center WTW System

Part Number: 9516-xx

Category : Wire to Wire

Pitch : .079＂(2.00mm)

Series : WTW2001

File : Download

Product Features

◆ Low profile
◆ 2 ~ 10 circuits available
◆ Material: PBT, UL 94V-0
◆ Accepts ALEX 9512T Terminal
◆ Mates with ALEX 9515-N Housing
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 125V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
