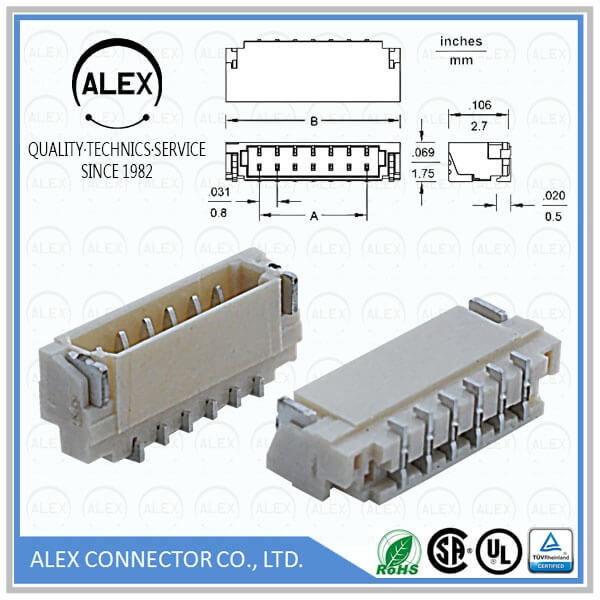

Product Name : Right Angle Header, SMT / .031"(0.80mm) Wire-to-Board Connector
Part Number: 9082-xx
Category : Wire to Board
Pitch : .031"(0.80mm)
Series : WTB0801
File : Download
Product Features
◆ 2~10, 12, 14~17, 20 circuits available
◆ Contact material: Matte tin-plated phosphor
bronze
◆ Tab material: Matte tin-plated brass
◆ Plastic material: UL 94V-0 natural H.F.
◆ Mates with ALEX 9080 Housing
Series Specifications
◆ Current rating: 0.50A AC/DC (#32 AWG),
0.20A AC/DC (#36 AWG)
◆ Voltage rating: 30V
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 100MΩ min. at 200V
◆ Dielectric withstanding voltage:
200V AC/minute
◆ Temperature range: -30℃ ~ +85℃
