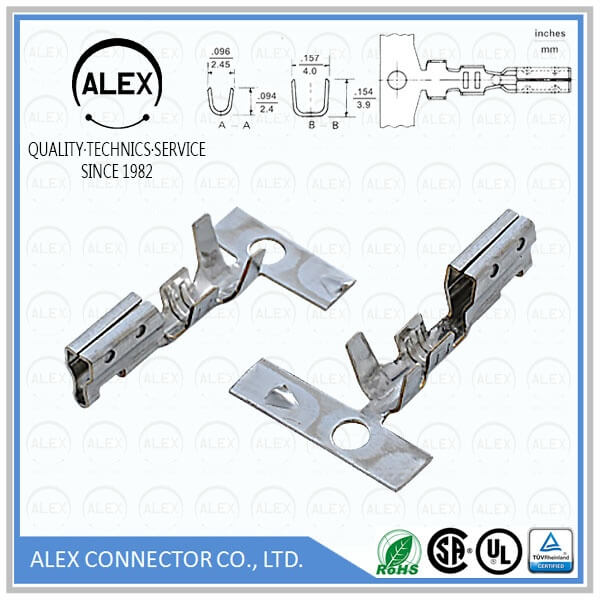

Product Name : Standard Spox Crimp Terminal / .295"(7.5mm)/.197"(5.0mm) WTB Connector

Part Number: 94T

Category : Wire to Board

Pitch : .295＂(7.50mm) /　　 .197＂(5.00mm)

Series : WTB7552

File : Download

Product Features

◆ 4 point contact
◆ Material: Brass or phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 8095, 8097, 8099 Housings
◆ Wire range: AWG #18 ~ #22
◆ Insulation Diameter: 2.60mm ~ 3.20mm

Series Specifications

◆ Current rating: 7A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
