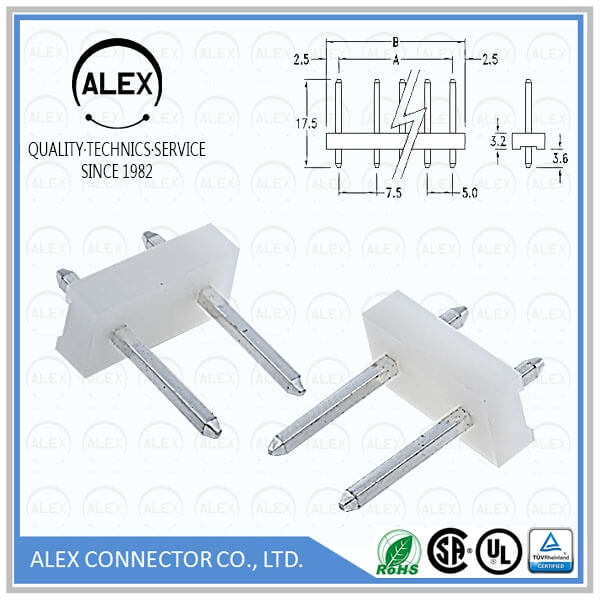

Product Name : Straight Pin Flat Header / .295"(7.5mm)/.197"(5.0mm) WTB Connector

Part Number: 8087-xx

Category : Wire to Board

Pitch : .295"(7.50mm) /   .197"(5.00mm)

Series : WTB7552

File : Download

Product Features

◆ 2 ~ 6 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Tin plated brass pins, plating options available.
◆ .045"(1.14mm) square pin
◆ Polarization through varied center spacing
 between circuit 1 & 2
◆ Mates with ALEX 8099-xx Housing
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating: 7A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
 After environmental testing/20mΩ max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
 (Including temperature rise)
