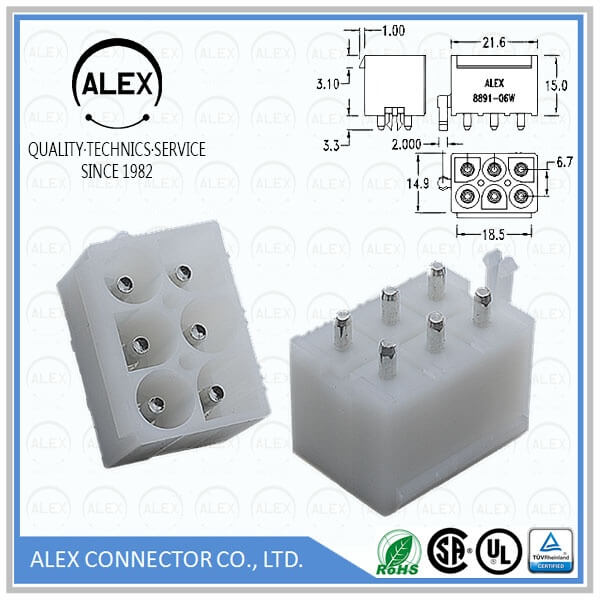

Product Name : Vertical Header / .093"(2.36mm) WTB Connectors

Part Number: 8891-xxW

Category : Wire to Board

Pitch : .264"(6.70mm)

Series : WTB670K

File : Download

Product Features

◆ 2, 3, 4, 6, 9 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Tin-plated brass pin
◆ Mates with ALEX 8891-xxM1 Housing
◆ Color: Nature
◆ UL File No.: E114003

Series Specifications

◆ Voltage rating: 600V AC, DC
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range:
 -40°C ~ +105°C
