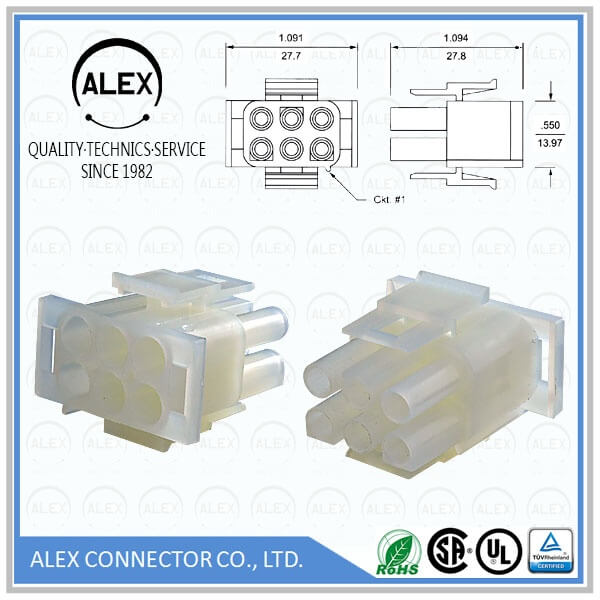

Product Name : Receptacle Housing / .250"(6.35mm) Power Connectors

Part Number: 9635-xxR

Category : Wire to Board

Pitch : .250＂(6.35mm)

Series : WTB635J

File : Download

Product Features

◆ 1 ~ 10, 12, 15 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Accepts ALEX 70T, 71T Terminals
◆ Mates with ALEX 9635-xxW, 9635-xxWR Headers
◆ Standard color: Nature
◆ Recommended panel thickness:
　.030" ~ .090" (0.762 ~ 2.286mm)
◆ Friction lock
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating: 13A(2~4P), 11A(6~15P)
◆ Voltage rating: 600V
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 5000V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
