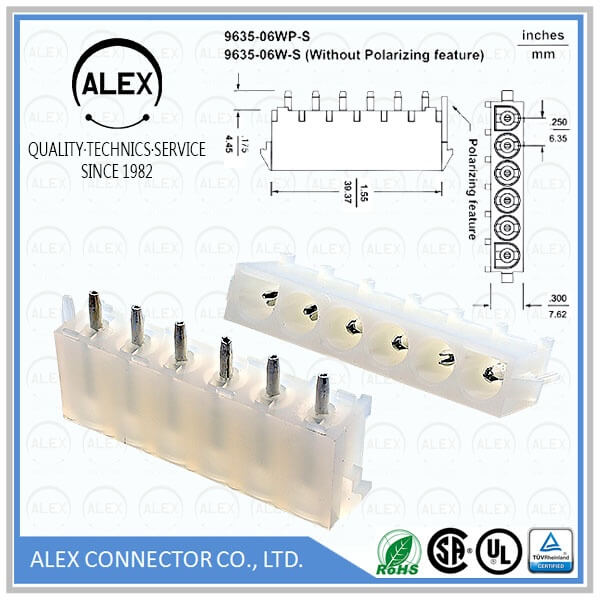

Product Name : Vertical Header / .250"(6.35mm) Power Connectors

Part Number: 9635-xxWP-S

Category : Wire to Board

Pitch : .250＂(6.35mm)

Series : WTB635J

File : Download

Product Features

◆ 6, 9 circuits available
◆ Plastic material: UL 94V-2 nylon 66
◆ Pin material: Tin-plated phosphor bronze
◆ Mates with ALEX 9635-xxR Housing
◆ With polarizing
◆ With Male Pins
◆ Standard color: Nature
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 13A(2~4P), 11A(6~15P)
◆ Voltage rating: 600V
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 5000V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
