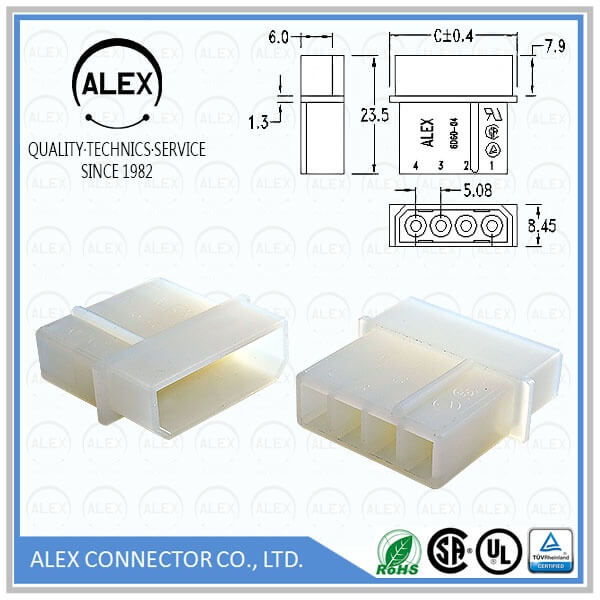

Product Name : Plug Housing / .200"(5.08mm) Disk Drive Power Connection

Part Number: 6060-xx

Category : Wire to Board

Pitch : .200＂(5.08mm)

Series : WTB508I-2

File : Download

Product Features

◆ 2 ~ 4 circuits available
◆ Plastic material: UL 94V-2 nylon 66
◆ Color: Nautre
◆ Accepts ALEX 62T Terminal
◆ Mates with ALEX 5050-xx Housing
◆ Mates with ALEX 5050-xxW Headers
◆ Mates with ALEX 870156 IDC
◆ UL File No.: E114003
◆ CSA File No.: LR86545
◆ TUV File No.: R9271078

Series Specifications

◆ Current rating: 7A max.
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: -40 ~ +105°C
　(including temperature rise)
