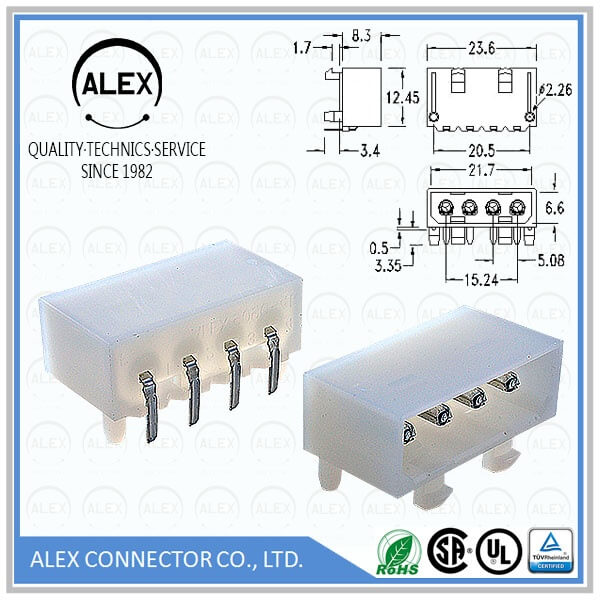

Product Name : Right Angle Header / .200"(5.08mm) Disk Drive Power Connection

Part Number: 9090-xxR

Category : Wire to Board

Pitch : .200＂(5.08mm)

Series : WTB508I-1

File : Download

Product Features

◆ 2 ~ 4 circuits available
◆ Housing: UL 94V-2 nylon 66
◆ Terminal:
◆ Current rating: 6.5A
◆ Mates with ALEX 870156 or 5050-xx Crimp Connectors

Series Specifications

◆ Current rating: 7A max.
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: -40 ~ +105°C
　(including temperature rise)
