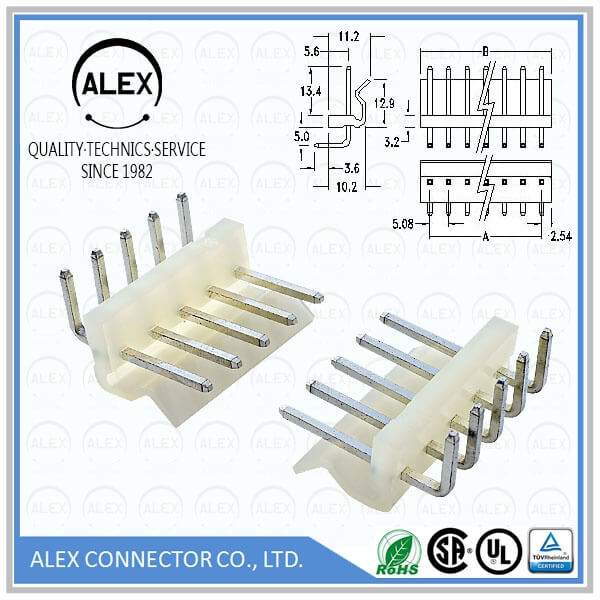

Product Name : Right Angle Header / .200"(5.08mm) WTB Connectors

Part Number: 8082-xx

Category : Wire to Board

Pitch : .200＂(5.08mm)

Series : WTB5081

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Tin plated brass pins, plating options available.
◆ .045"(1.14mm) square pin
◆ Mates with ALEX 8097-xx Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 7A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
