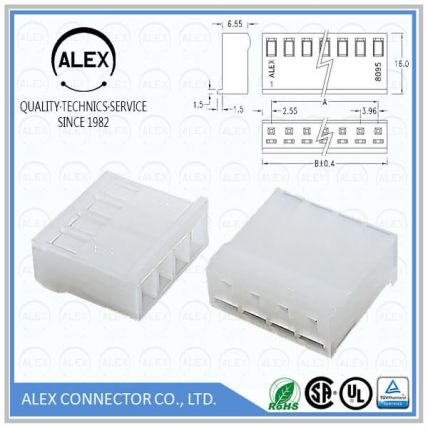

Product Name : Crimp Terminal Housing / .156"(3.96mm) WTB Connectors

Part Number: 8095-xx

Category : Wire to Board

Pitch : .156＂(3.96mm)

Series : WTB3964

File : Download

Product Features

◆ 2 ~ 15 cuircuits available
◆ UL 94V-2 nylon 66
◆ With locking ramp
◆ Molded in locking arm for terminal
◆ Accepts ALEX Spring-Box terminal 94T/95T
◆ Mates with ALEX 8671, 8672, 8673, 8674 Headers
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating: 7A
◆ Voltage rating: 250V AC (R.M.S.)
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40°C ~ +105°C
