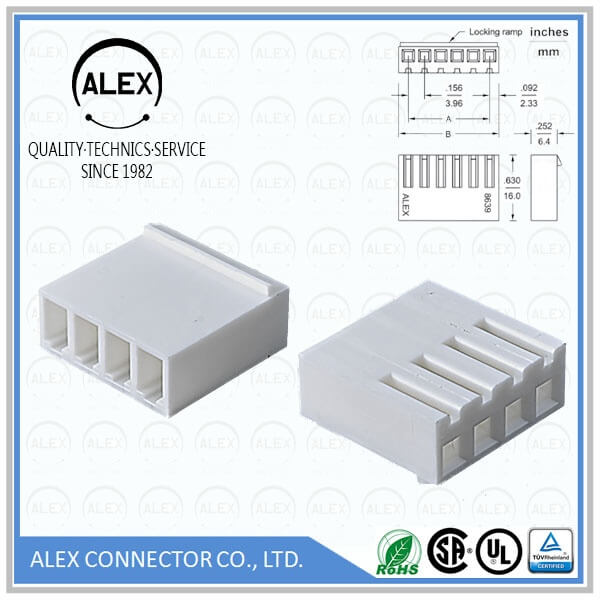

Product Name : Crimp Terminal Housing / .156"(3.96mm) WTB Connectors

Part Number: 8639-xx-R

Category : Wire to Board

Pitch : .156＂(3.96mm)

Series : WTB3962

File : Download

Product Features

◆ 2 ~ 25 circuits available
◆ UL 94V-2 nylon 66
◆ Accepts ALEX 24T-1xU4 Terminal
◆ With Locking ramp and Without Polarizing rib
◆ Mates with ALEX 3960, 3961, 8671, 8672,
　8673, 8674 Headers
◆ Mates with ALEX K-396-2 Key
◆ UL File No.: E114003
◆ CSA File No.: LR86545
◆ TUV File No.: R9854382

Series Specifications

◆ Current rating: 7A
◆ Voltage rating: 250V AC (R.M.S.)
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40°C ~ +105°C
